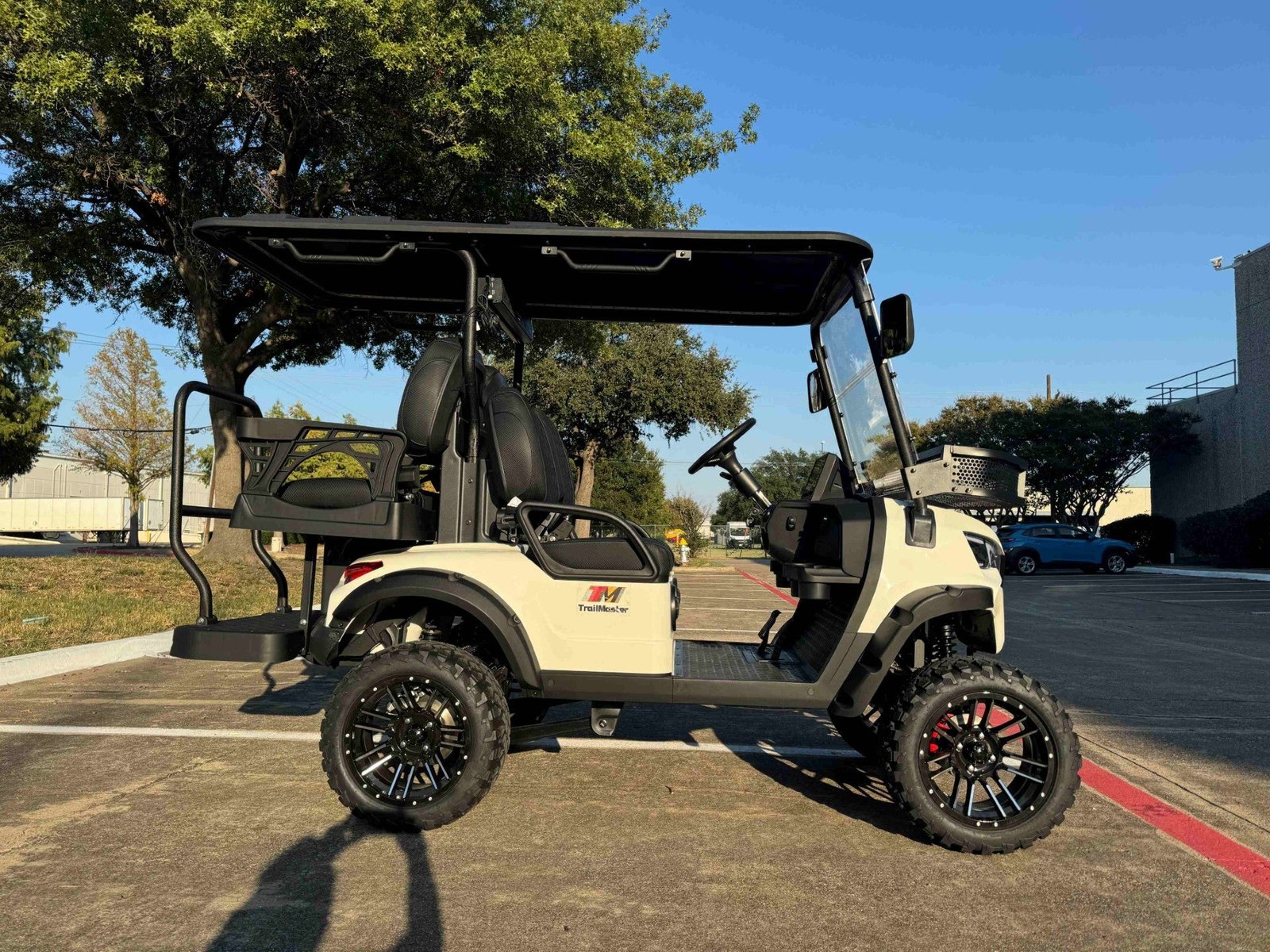

Trailmaster TBM X4, 48V Electric Golf Cart, Four Passenger, Electromagnetic Braking, Custom Rims, Lifted, Ground Effects LED lights, 10.5 LED Display, 48 Mile range, High/Low Trans
- Brand: Trailmaster
$10,482.93
10 in stock
Brand-new Trailmaster TBM X4 electric off-road UTV/side-by-side. For off-road sporting use only – NOT for public roads or commercial transportation.
Trailmaster TBM X4, 48V Electric Golf Cart, Four Passenger, Electromagnetic Braking, Custom Rims, Lifted, Ground Effects LED lights, 10.5 LED Display, 48 Mile range, High/Low Trans
Electric Off-Road UTV / Golf Cart Style Side-by-Side for trail, sport, and outdoor recreational use. Designed and certified for off-road recreational riding only.
- Brand: TrailMaster
- Category: Electric Off-Road UTV / Golf Cart Style Side-by-Side
- Condition: New
- Use: Off-road recreational use only

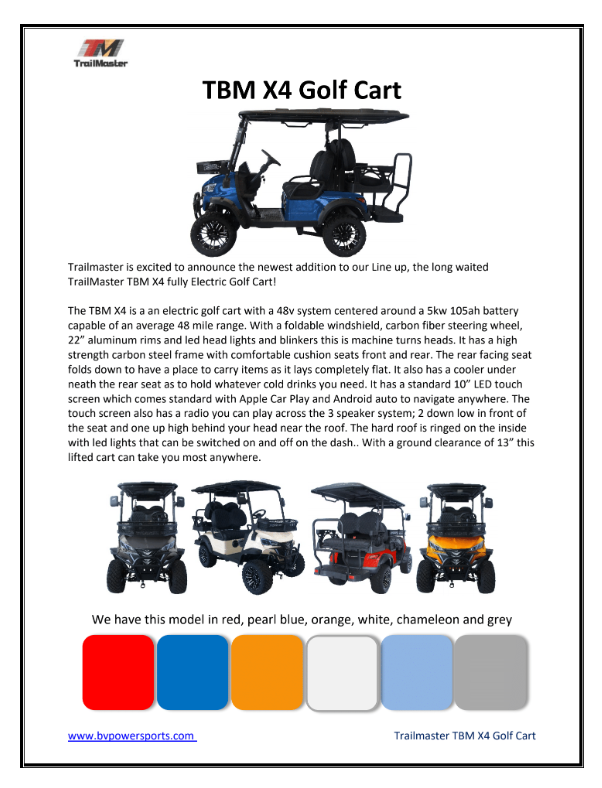

All NEW Trailmaster 4-passenger 48V Golf Cart. This amazing NEW golf cart features a 6.3 kW three-phase asynchronous AC motor. On a full charge, this 4-seater golf cart has a travel distance of up to 48 miles. Max speed of the 4-seater is 20 MPH in high gear and low gear that can climb up to a 20% slope. The power output is rated at 5KW.

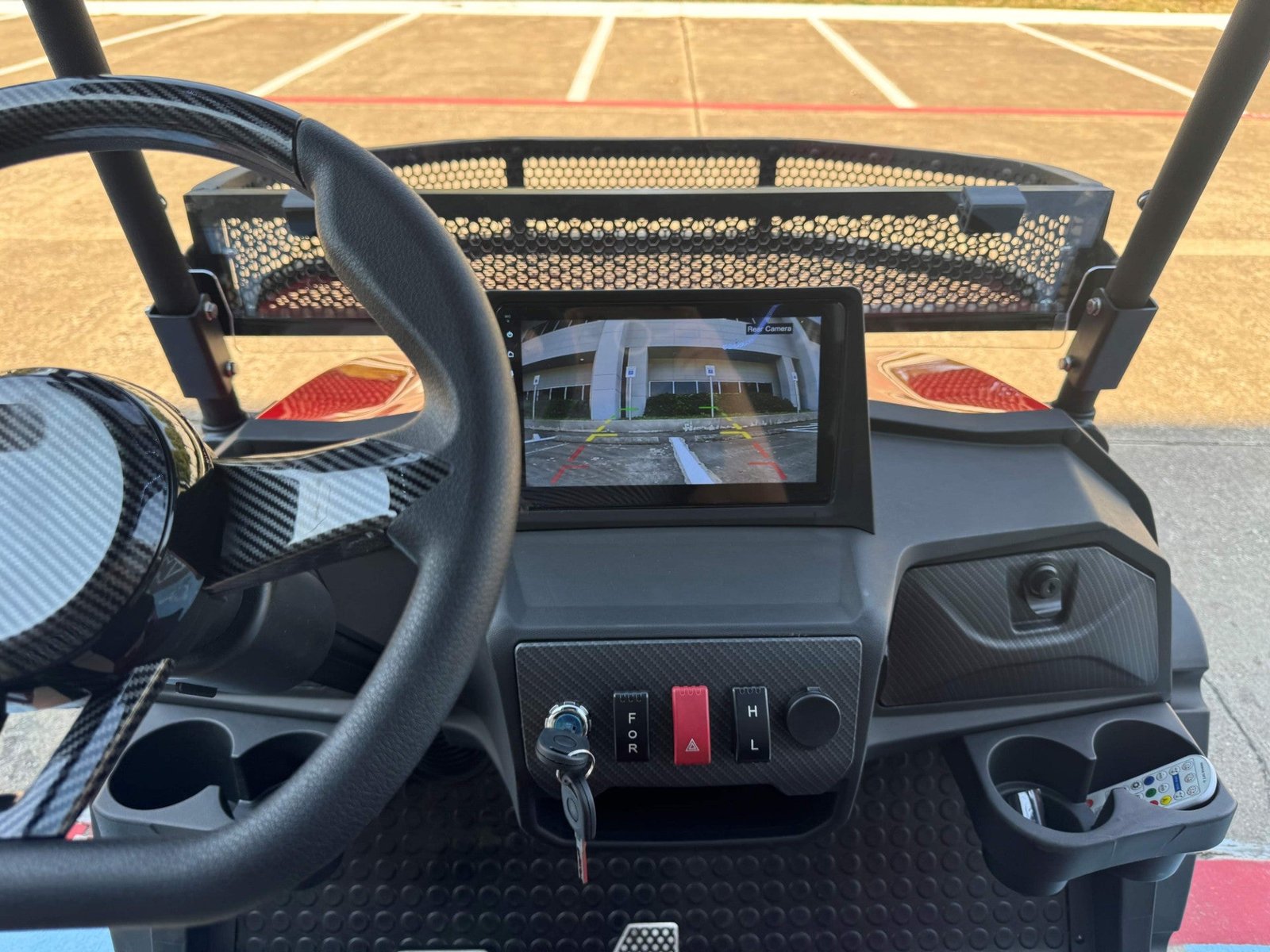

The 10.5-inch high resolution shows all of the information on the charge level of the batteries, stereo, and Bluetooth selections, and the reverse camera view. The windshield is foldable or removable if you choose to let the wind flow. The diamond tuck leatherette seats are comfortable even in the summer.

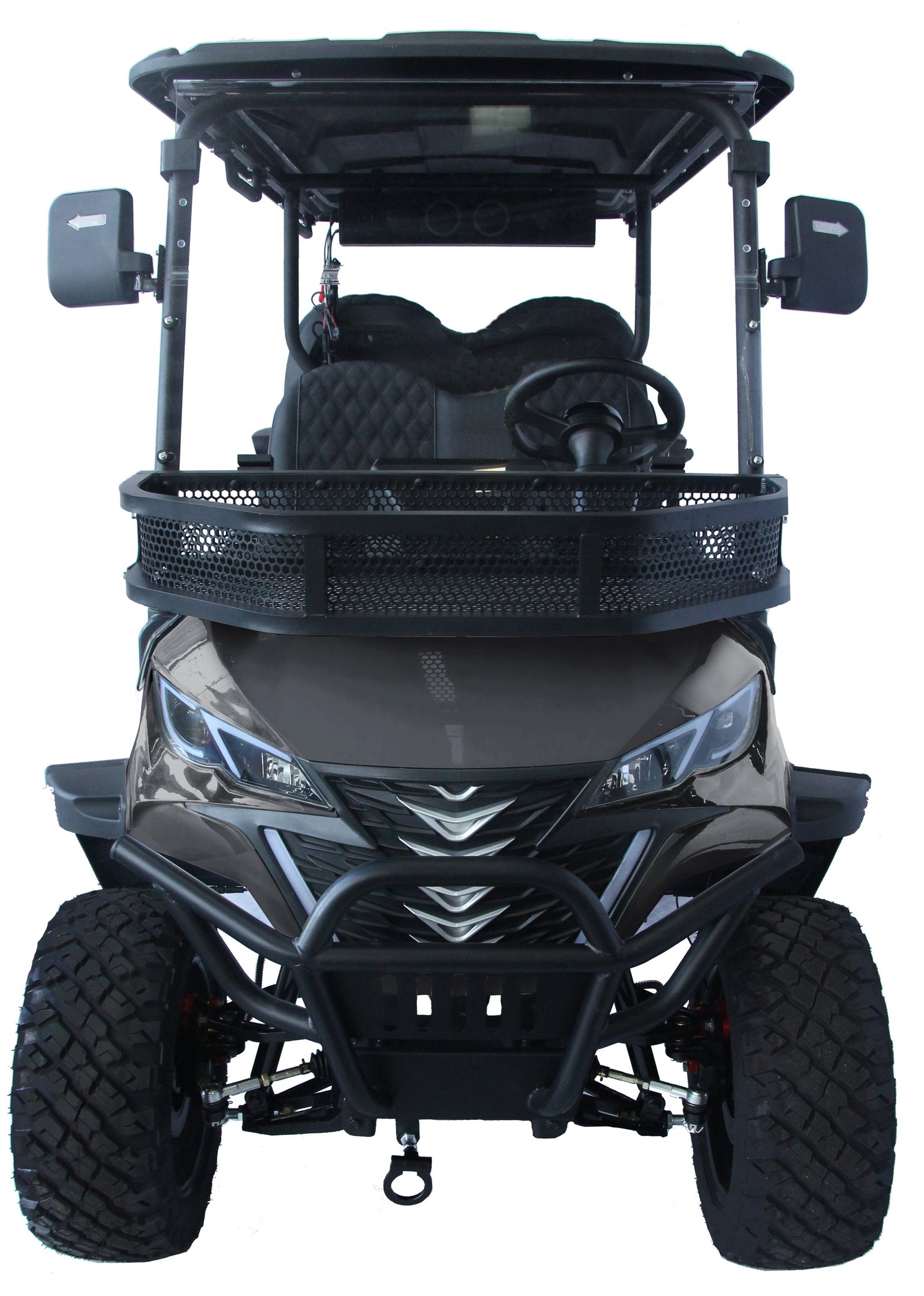

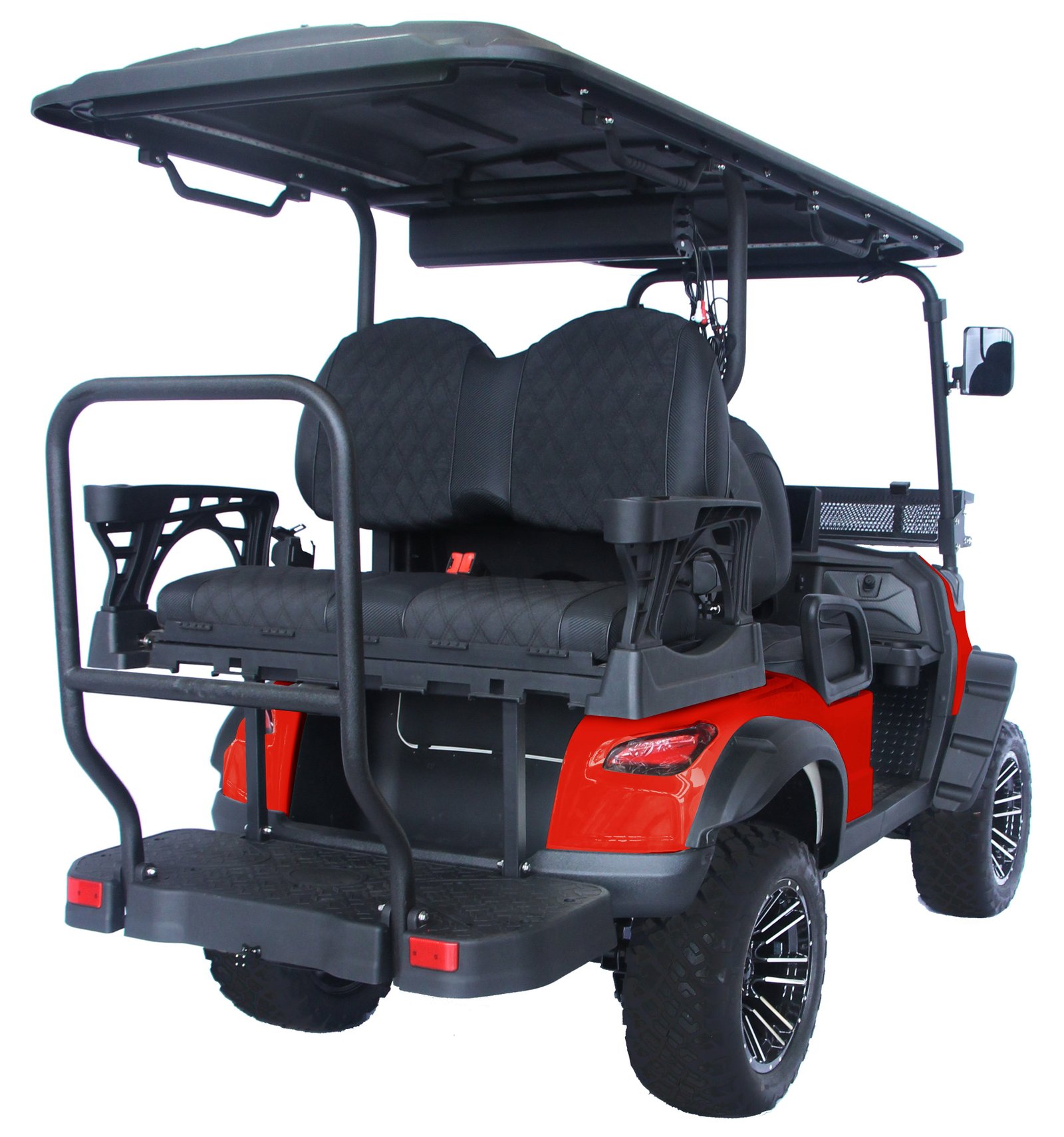

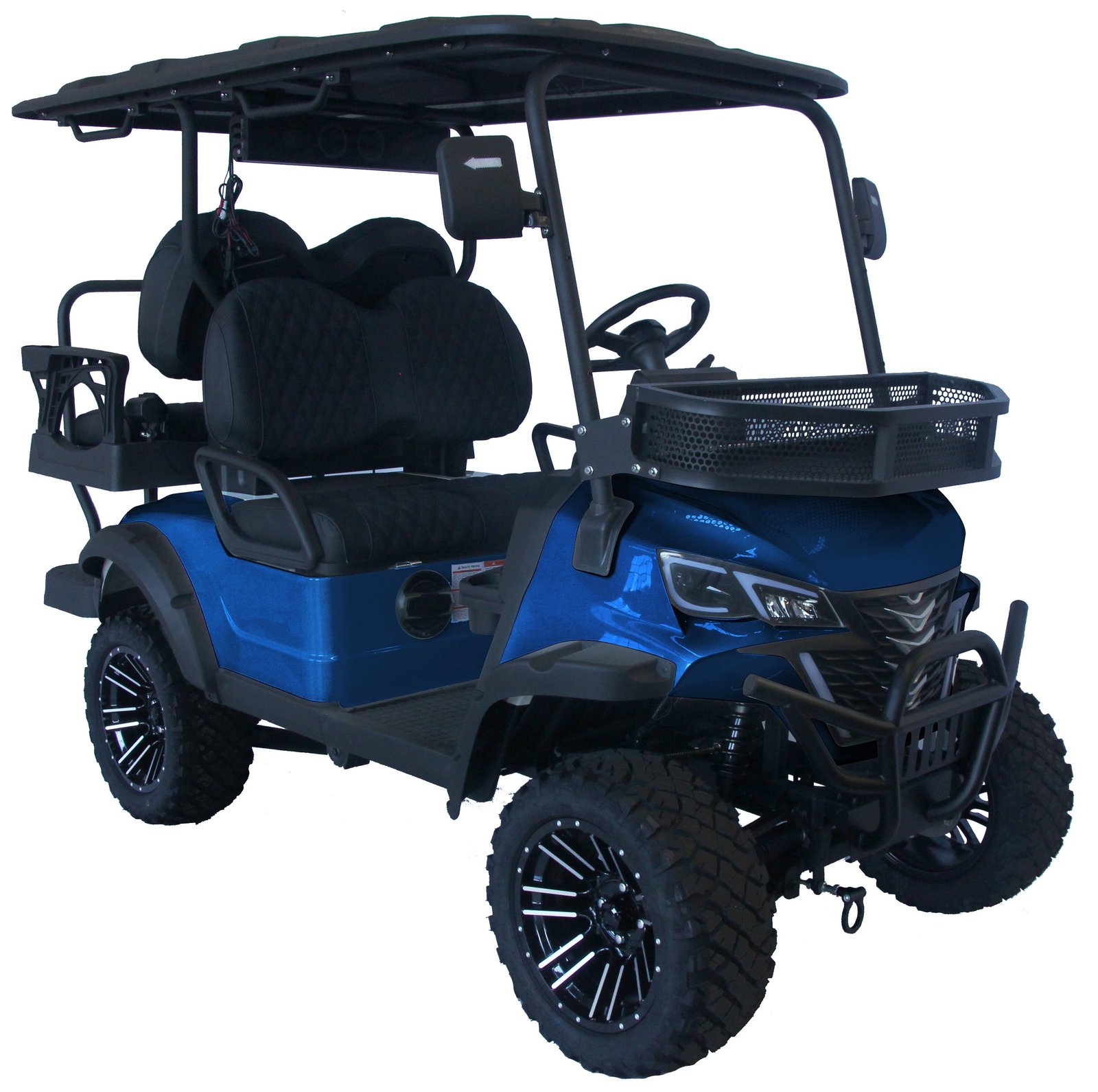

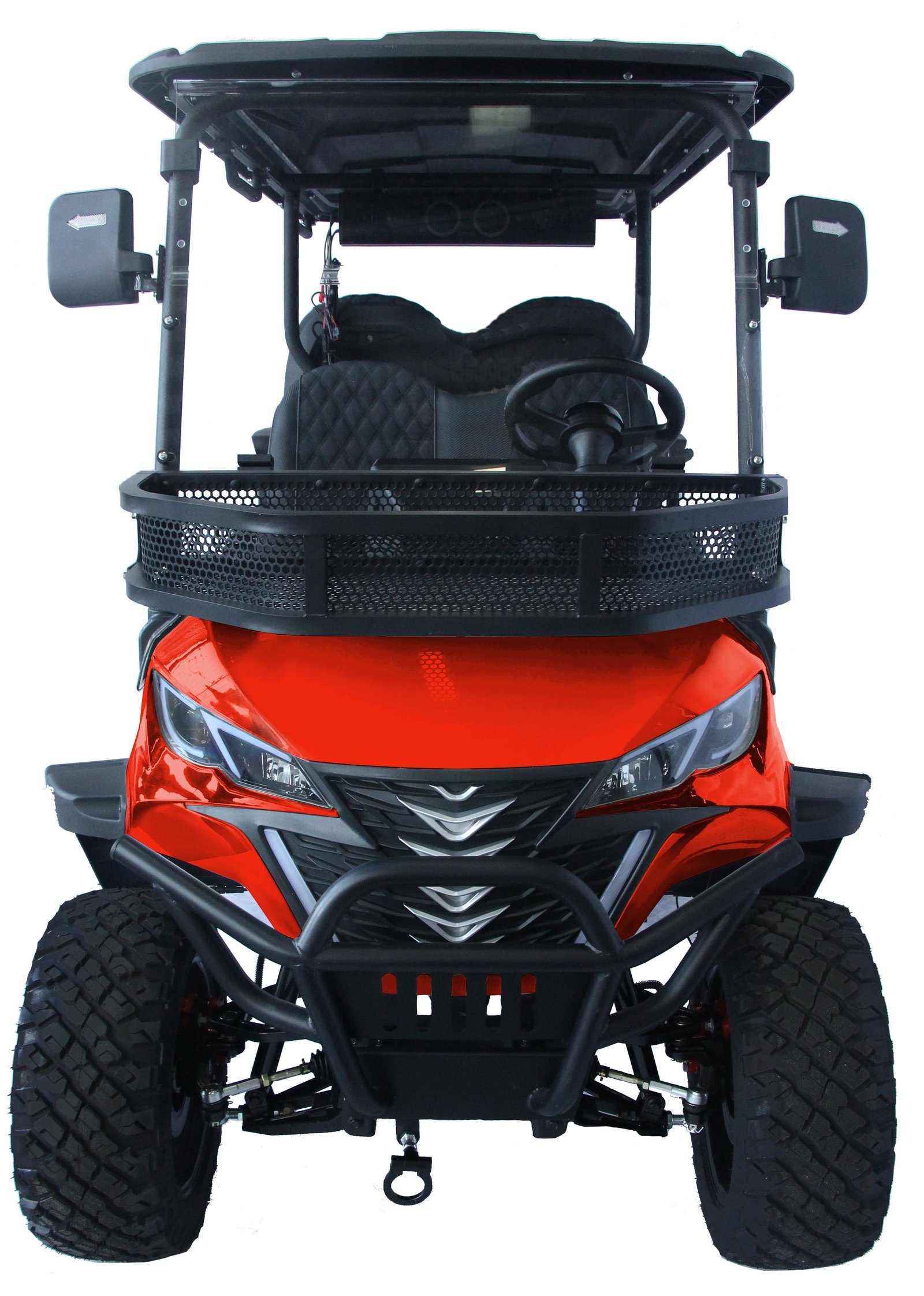

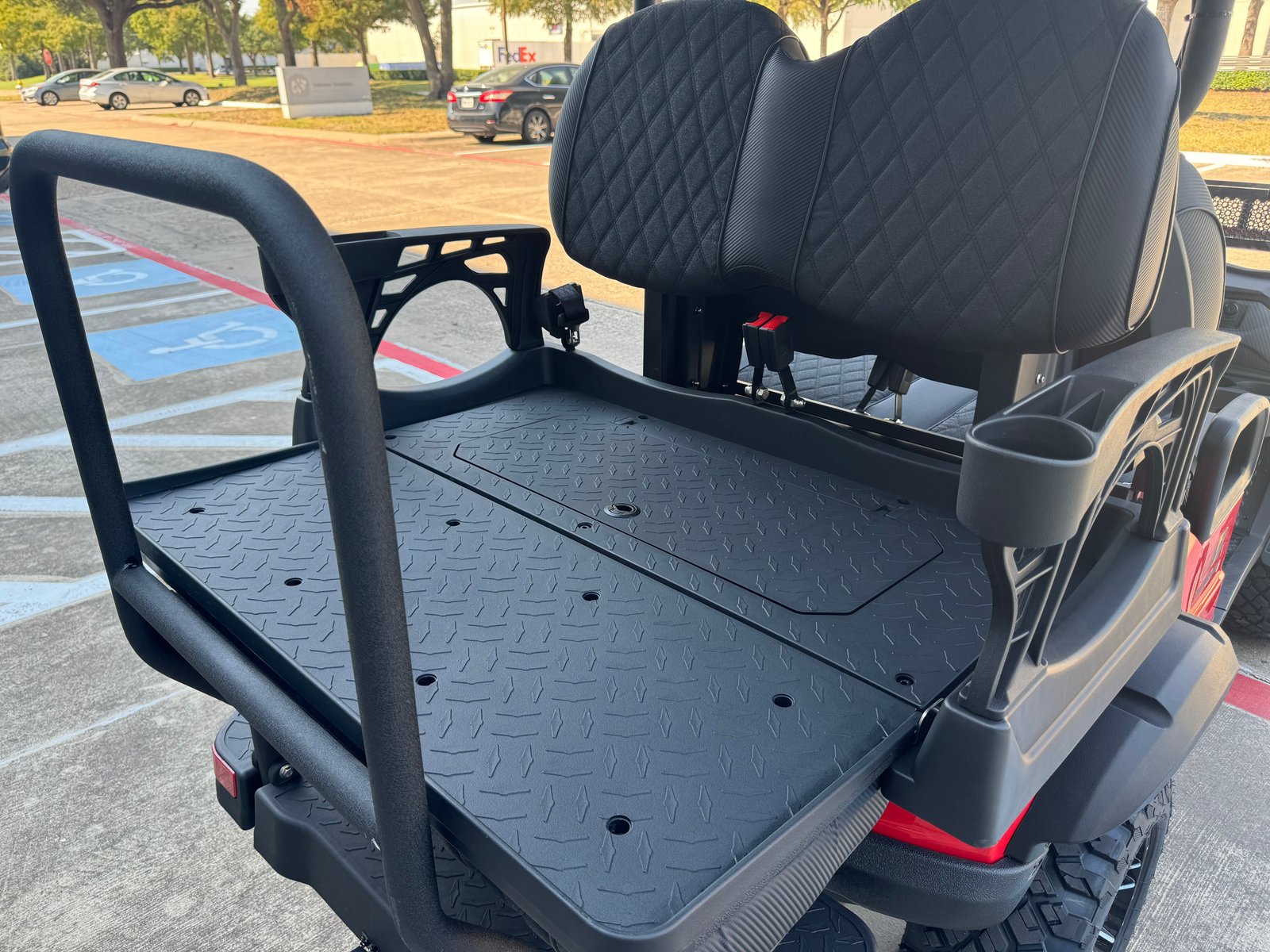

There is room for 4 passengers with individual seat belts, making for a comfortable 4-seater. The back seat flips over into a rear cargo area. The front has an aluminum cargo basket that comes installed from the factory. The front brush guard is included.
The suspension is lifted and loaded with features like double A-arms that are independent of each other to provide the best possible ride, four-wheel hydraulic disk brakes, and a 1200lb carrying capacity. Even the paint is upgraded using automotive paint baked on to the high-impact body. Front a rear light-duty trailer hitch

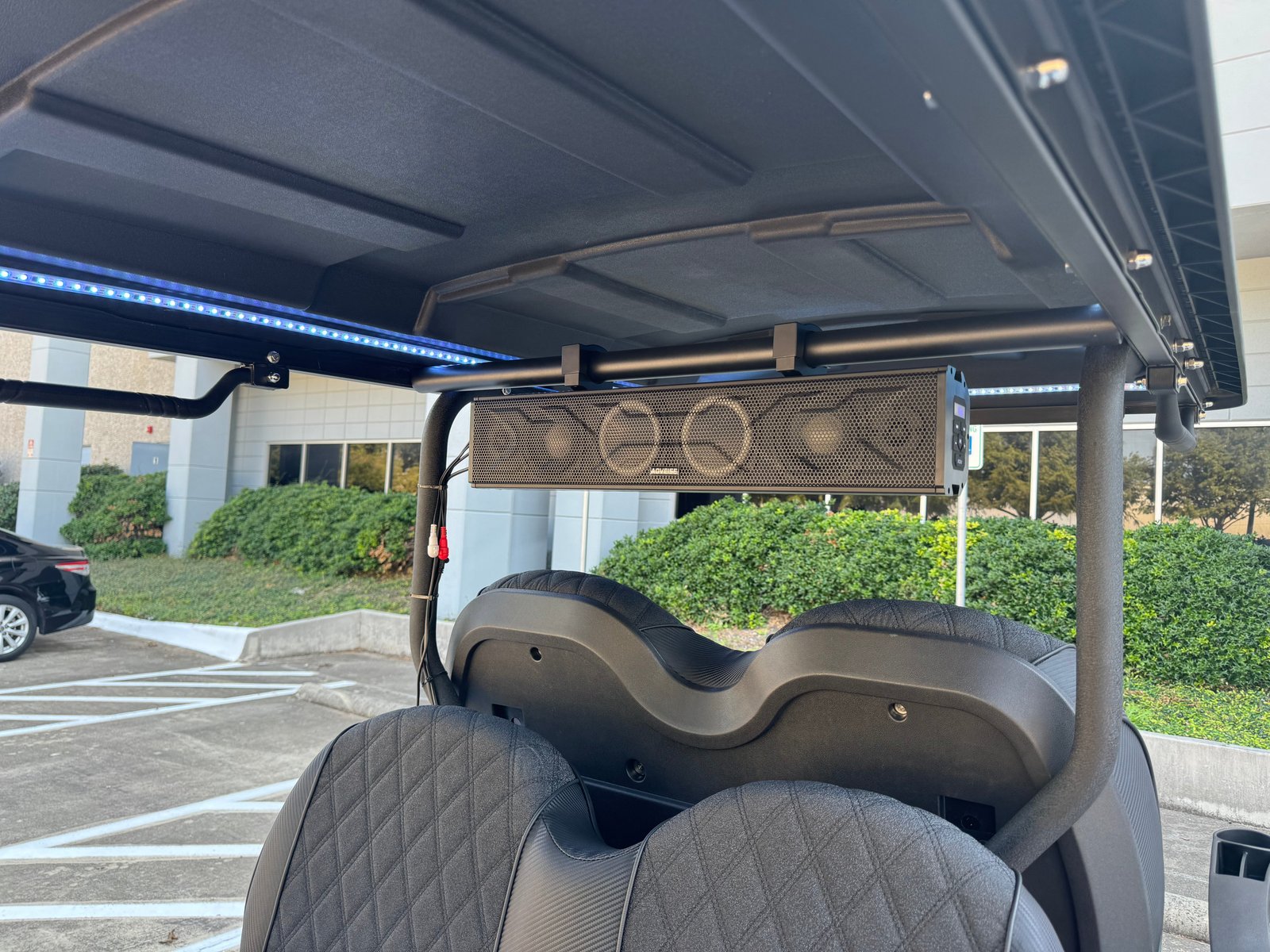

The TBM has a full DOT LED light package and full mirrors. The TBM X4 has LED under-body lights and lights along the roof controlled with the remote. The Bluetooth sound bar comes installed and ready to play. USB-A and C battery chargers are also installed. Lots of cup holders for hydration.
This unit ships fully assembled on a car carrier from Trailmaster in Texas.

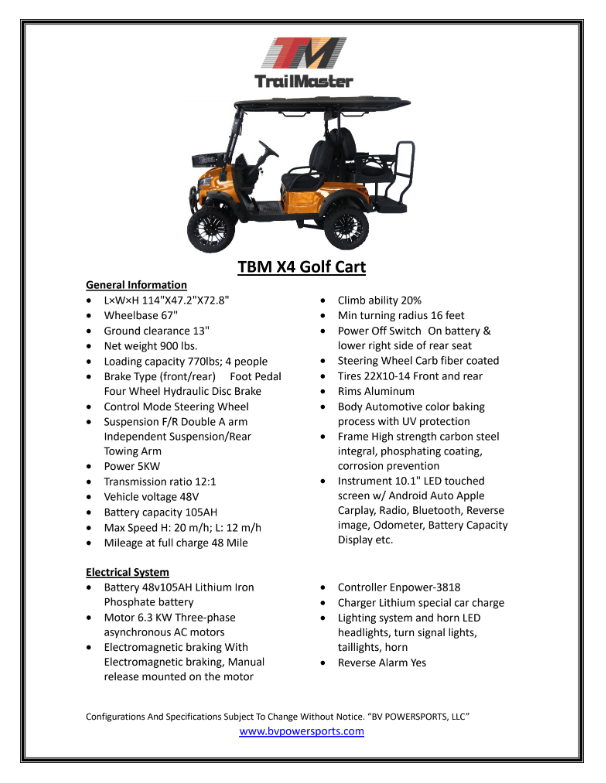

Tech Specs
| Vehicle General Specifications | |
|---|---|
| Dimensions and Capacity | |
| Length × Width × Height | 114″ x 47.2″ x 72.8″ (2900mm x 1200mm x 1850mm) |
| Wheelbase | 67″ (1700mm) |
| Ground Clearance | 13″ (330mm) |
| Net Weight | 900 lbs |
| Loading Capacity | 770 lbs / 350 kg; 4 people |
| Performance and Power | |
| Power | 5 KW |
| Transmission Ratio | 12:1 |
| Vehicle Voltage | 48V |
| Battery Capacity | 105 AH |
| Maximum Speed | High: 20 mph; Low: 12 mph |
| Mileage at Full Charge | 48 miles / 80 km |
| Climb Ability | 20% |
| Minimum Turning Radius | 16 feet |
| Frame, Suspension, and Brakes | |
| Brake Type (Front/Rear) | Foot Pedal Four-Wheel Hydraulic Disc Brake |
| Control Mode | Steering Wheel |
| Suspension (Front/Rear) | Double A-arm Independent Suspension / Rear Towing Arm |
| Frame | High Strength Carbon Steel Integral Frame, Corrosion Resistant |
| Electrical and Lighting System | |

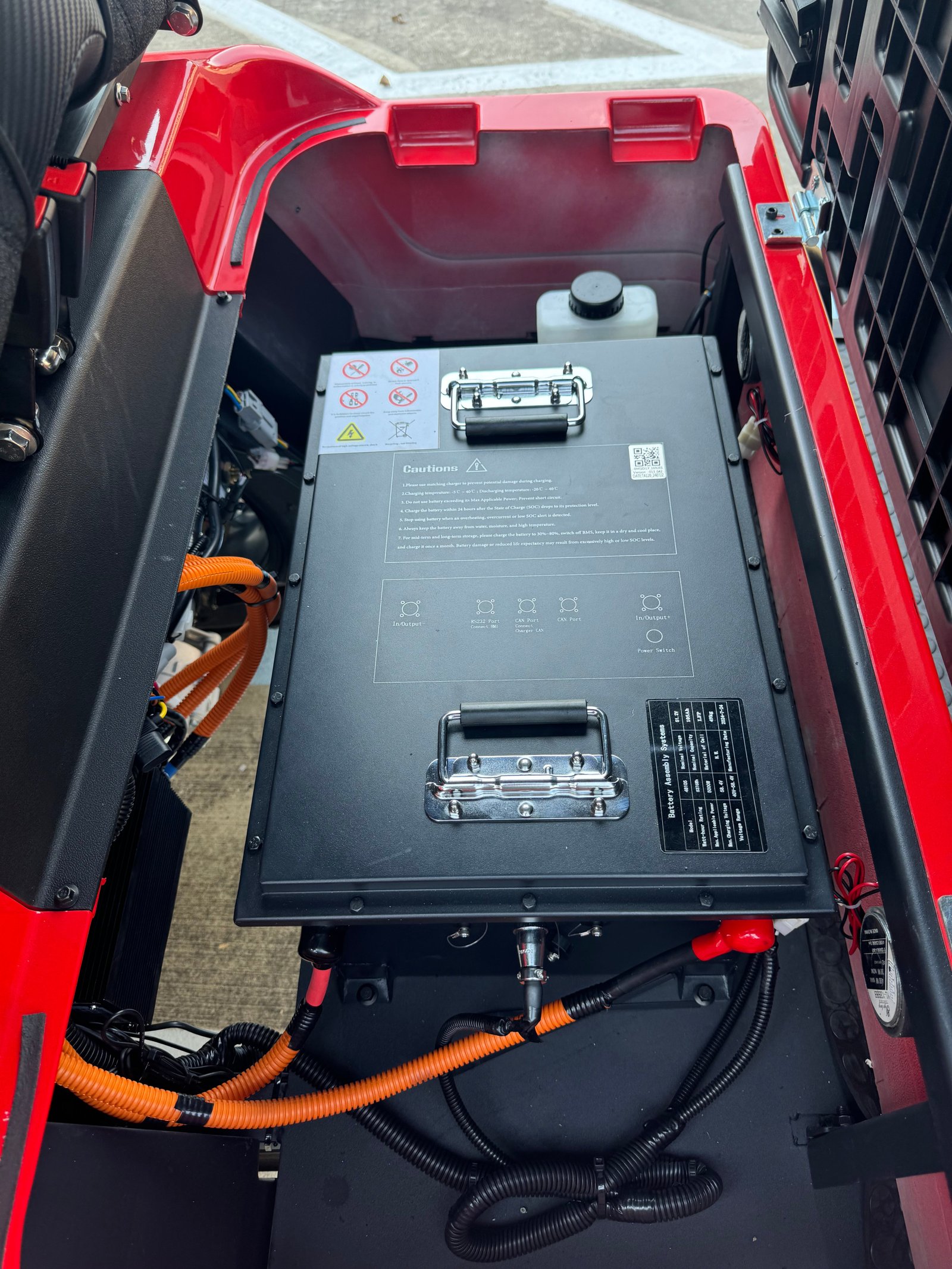

| Battery | 48V 105AH Lithium Iron Phosphate Battery |
| Motor | 6.3 KW Three-phase Asynchronous AC Motor |
| Electromagnetic Braking | With Electromagnetic Braking, Manual Release Mounted on Motor |
| Controller | Enpower-3818 |
| Charger | Lithium Special Car Charger |
| Lighting System and Horn | LED Headlights, Turn Signals, Taillights, Horn |
| Reverse Alarm | Yes |
| Other Features | |

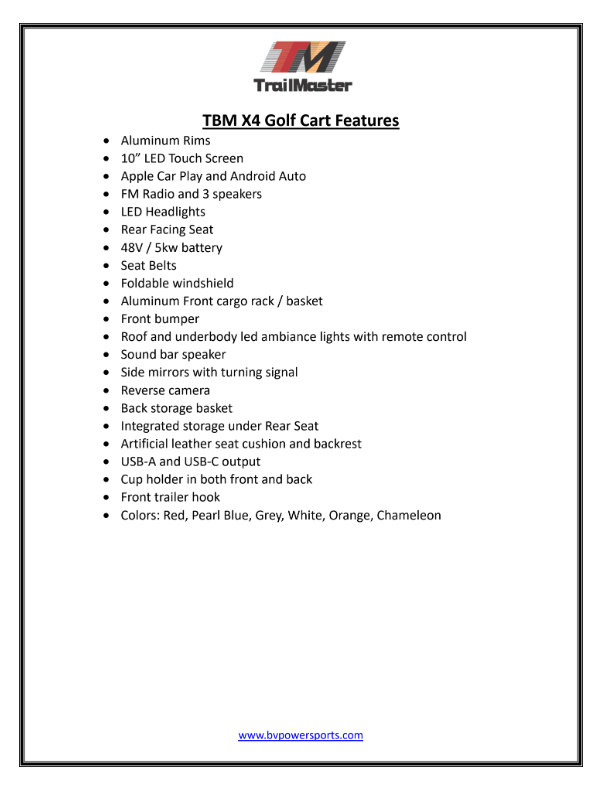

| Additional Features | Foldable Windshield, Aluminum Front Cargo Rack, Front Bumper, Roof and Underbody LED Ambient Lights with Remote Control, Sound Bar Speaker, Side Mirrors with Turning Signal, Reverse Camera, Back Storage Basket, Artificial Leather Seat Cushion and Backrest, USB-A and USB-C Output, Cup Holder in Both Front and Back, Front Trailer Hook |

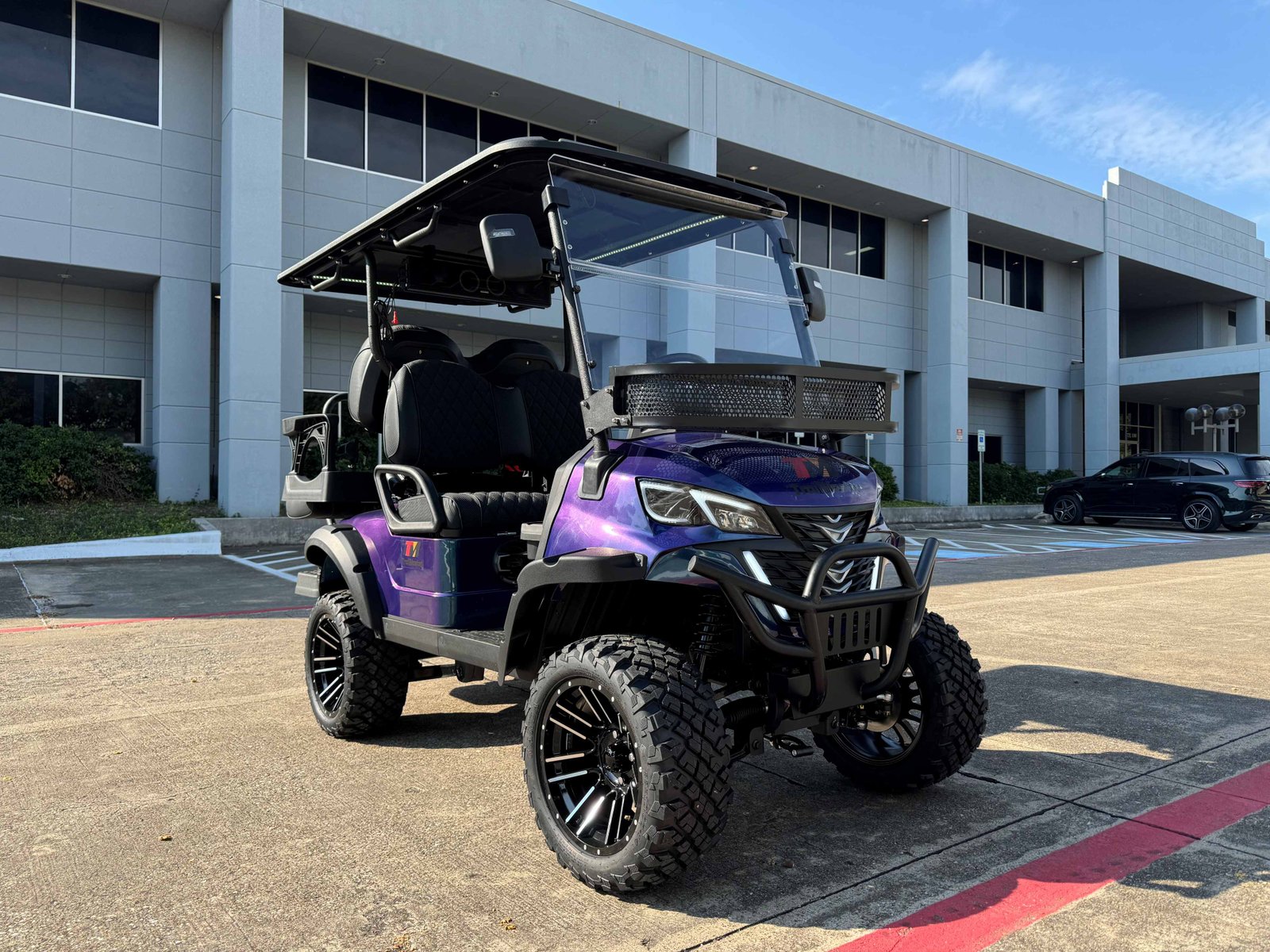

| Colors Available | Red, Pearl Blue, Grey, White, Orange, Chameleon |
Safety: Operators and passengers must wear DOT-approved helmets, eye protection, gloves, and protective gear. Use seat belts/harnesses at all times. We recommend all operators complete a certified UTV/SxS safety training course. Riders must be appropriately sized for the model and follow all local off-road riding regulations.
Additional information
| Brand | TrailMaster |
|---|---|
| Engine | Electric |
| Intended Use | Off-Road Recreational Electric UTV/Side-by-Side (Not For Road Use) |
