Trailmaster ATV XD 125UF, Utility style Mid Size Youth ATV, Electric Start, Automatic with Reverse
- Brand: Trailmaster
$1,218.15
10 in stock
Brand-new Trailmaster ATV XD 125UF youth off-road ATV (All-Terrain Vehicle). For off-road sporting use only — NOT for public roads or commercial transportation.
Trailmaster ATV XD 125UF, Utility style Mid Size Youth ATV, Electric Start, Automatic with Reverse
Youth Off-Road ATV (All-Terrain Vehicle) for trail, sport, and outdoor recreational riding. Designed and certified for off-road recreational use only.
- Brand: TrailMaster
- Category: Youth Off-Road ATV (All-Terrain Vehicle)
- Condition: New
- Use: Off-road recreational use only
This unit is a mid-size 125 for ages 12 and up
In the fun family sport of off-roading, you want to make sure your kids start with the right unit. A larger frame and wider stance with a 120cc motor provide a margin of safety while providing years of safe riding. Buying the right size ATV is as important as finding the right-priced ATV. The XD 125UF is a perfect combination of fun, agility, reliability, and most importantly, rugged frame design and easy operation, all engineered to give your younger riders the right start for a lifetime of off-road fun.
Built with a strong, tubular steel frame and a rugged ABS plastic utility body with a heavy-duty front-end brush guard. The 120cc engine combines to make this rugged quad one of the best youth Utility ATVs on the market!
The TM ATV XD 125UF makes an excellent choice when upgrading your kids from a smaller starter quad to a midsize machine ATV.
Full suspension, front, and rear brakes, and headlights round out the list of excellent features on this value-packed four-wheeler.
CA customers: this item is NOT CARB approved, but you may use on your private land.
Revised 11/2025 bl
Tech Specs
| Engine Type | Single Cylinder, 4-Stroke |
| Cooling | Air Cooled |
| Drive System | Chain |
| Piston Displacement | 120cc |
| Bore and Stroke | 52.4mm x 49.5mm |
| Compression Ratio | 9.5:1 |
| Maximum Power | 5/7500kw/r/min |
| Maximum Torque | 7.0/5500N.m/rpm |
| Starter | Electric |
| Transmission | Automatic with Reverse |
| Length | 57.7 inches |
| Width | 36.4 inches |
| Height | 36.6 inches |
| Seat Height | 24.4 inches |
| Wheelbase | 33.8 inches |
| Ground Clearance | 5.5 inches |

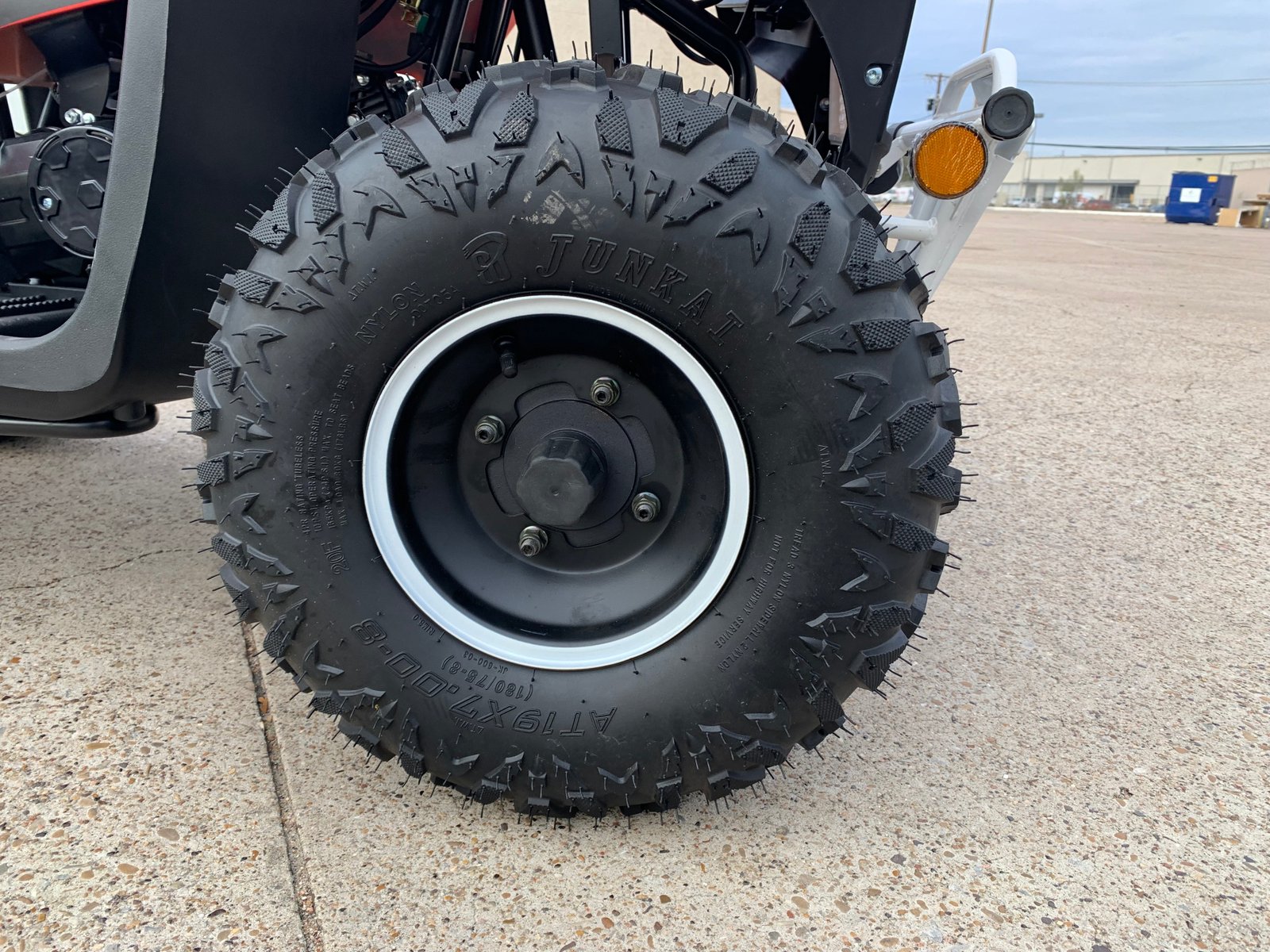

| Front Tires | 19 x 7-8 |
| Rear Tires | 18 x 9.5-8 |
| Ignition | CDI |
| Maximum Speed | varies |
| Net Weight | 215.6 lbs |
| Gross Weight | 260 lbs |
| Battery | 12V/5Ah |
| Frame | Steel |
| Wheel Type | Steel |
| Engine Oil Capacity | 0.20 gal |
| Front Suspension | Double A-Arm |
| Rear Suspension | Single A-Arm |
Safety: Operators must wear a DOT-approved helmet, eye protection, gloves, boots, and protective riding gear. We recommend all riders complete a certified ATV safety training course. Riders must be appropriately sized for the model and follow all local off-road riding regulations.
Additional information
| Brand | TrailMaster |
|---|---|
| Engine | |
| Intended Use | Off-Road Recreational Youth ATV (Not For Road Use) |
